7760320 ORP Sensor

Aquatrac ORP Sensor

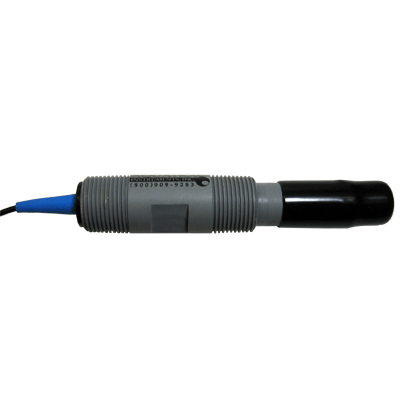

7760320 ORP Sensor with grey PVC Body

For MultiFLEX, Aegis, SmartSeries, ProMTrac, and SlimFlex Controllers.

Wires to ORP sensor input terminals.

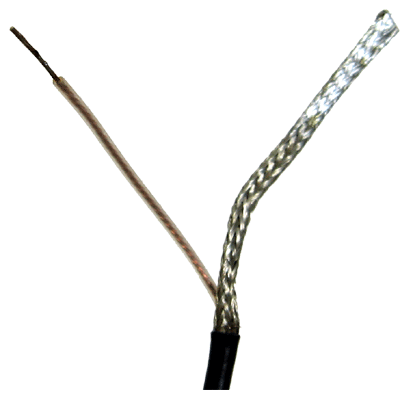

For distances not to exceed 200 feet. This sensor is used in Waste Water applications and dirty environments. ¾" NPT each end, 6.3" Long CPVC, 0-80C, 100psi, Probe insertion 2" from threaded end, Double junction, flat faced, sealed. Un-amplified, 1mV/mVWith 20ft. of RG174LN coaxial cable, un-terminated, tinned ends.

Cable tagged red For use with the SXT-PHE-FF Sensor Entry T's

Old Aquatrac P/N: ORP-FF

Click an image for a larger view
